EPON ONU 4GE PORTS GDONU100-4GE

GDONU100-4GE is an ONU device designed by Lootom based on mixing and multi-service network. This series ...

Current position：HOME > PON

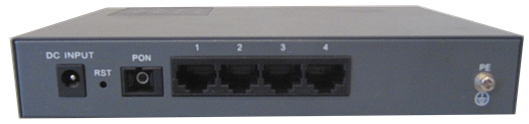

EPON ONU 4GE PORTS GDONU100-4GE

Overview    GDONU100-4GE is an ONU device designed by Lootom based on mixing and multi-service network. This series of products follow the international standard IEEE 802.3 ah, the communications industry standard of China (YD/T 1475-2006), and the EPON equipment technical requirements of China Telecom. It possesses good interoperability and maneuverability and it can realize interconnection with the mainstream OLT equipment manufacturers. Features         ● By using point to multipoint network topology, it can effectively collect scattered ethernet business users and convergence, fast ethernet interface on the user side to provide a standard RJ45 to smooth interconnection with the existing network.
        ● Dynamic bandwidth allocation mechanism ensures that all users can more reasonably share 1 Gbps bandwidth and realizing the reliable quality of service (QOS) and ensuring different business service quality in the same network.
        ● It supports IGMP multicast and makes good use of broadband.
        ● It supports ports isolation.
        ● It supports?ethernet loop detection, can automatically judge whether there is a ethernet device network loop blocking .When loop disappears, it can automatically recover.
        ● It supports multicast VLAN.
        ● It supports remote loopback and remote diagnosis of network status.
        ● It possesses rich OAM functional design, including configuration, alarm, performance monitoring, fault isolation and safety management, etc. It can provide the OLT remote management, and support local management. Technical Specifications

Item	GDONU100-4GE
User Networks interface	4 fixed 10/100/1000 MBASE-T self-adaptive RJ45 interface
PON interface	Up and down symmetrical transmission rate:1.25Gbps Network coverage radius : 20 km Optical interface type：SC/PC Optical receiver with high sensitivity : ≥-26dBm Luminous power：0~4dBm Security:ONU authentication mechanism
Standard	IEEE 802.3ah The communications industry standard of China (YD/T 1475-2006) IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP Ethernet – II, ethernet –SNAP
VLAN	VLAN based on parts IEEE 802.1Q VLAN
QOS	Back pressure type fluid control (half duplex) IEEE 802.3x fluid（full duplex） Preventing The Head Of Line mechanism IEEE p802.1p, COS Each port four queues sent 8t prior WR.SP and FIFO queue scheduling algorithm Port speed limiting Each port four sent eight priority queue map 802.1 p WR, SP and FIFO queue scheduling algorithm Port speed limit
Reliability	UDLD(Single direction link detection protocol , preventing the survival tree loop) supporting functions of Dying-Gasp
Network security	IEEE 802.1x, the access control based on the port. Supporting local and remote identification, EAP end or pass through CHAP, EAP identification Limiting the maximum number of users of per port Protection of port Message storm control
Administration allocation	CLI, Web,SNMP, TELNET,etc. Upgrading software through TFTP Local or server system log to record system log Ping, trace route network testing tools, etc.
Dimension	170 mm(W) x 98 mm(D) x 28 mm(H) Box dimension: 280 mm(W) x 130 mm(D) x 50 mm(H) Weight : <0.7kg
Dimension	Installation ：plug and play
Heat dispersion	Even used for a long time (24 hours), equipment will be heated, but it will not cause performance degradation and device deformation damage .
Surroundings parameter	Operating temperature：0℃～50℃
Surroundings parameter	Storage temperature：-40℃～80℃
Power supply	The power adapter type: switch power adapter
	Rated input voltage：110V～240V，50/60Hz。
	Input voltage fluctuation ：domestic ±20％,international ±10％。
	Fuse：installing an unrecoverable temperature resistance at the input end
	power: <7W
Body case	Metal case
