EPON ONU 4FE PORTS GDONU100-4FE

GDONU100-4FE is an ONU device designed basing on mixing and multi-service network is also an EPON SFU terminal ...

Current position：HOME > PON

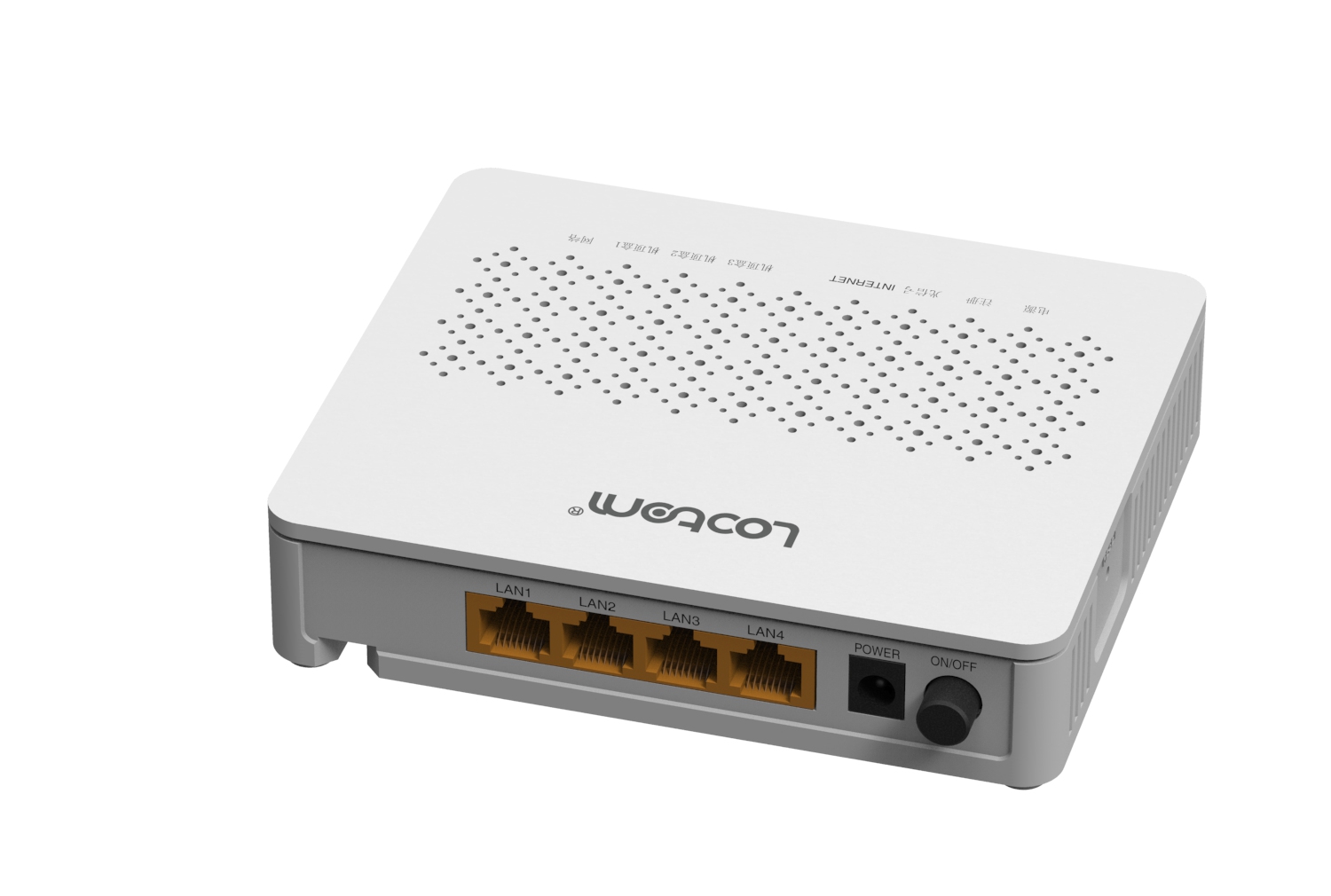

EPON ONU 4FE PORTS GDONU100-4FE

Overview        GDONU100-4FE is an ONU device designed basing on mixing and multi-service network is also an EPON SFU terminal applied in FTTH/O solution with four 10/100BASE-T interfaces. It can provide users with high-speed data service and high-quality video service. This series of products follow the international standard IEEE 802.3 ah, the communication industry standard (YD/T 1475-1475). It possesses good interoperability and maneuverability and it can realize interconnection with the mainstream OLT equipment manufacturers. Features         ● GDONU100-4FE is used in conjunction with Lootom’s OLT equipment with 1Gbps up and down symmetrical PON transmission rate and it can realize the high split ratio of 1:64 and up the coverage radius to 20 km.
        ● Specifically developed VLAN, spanning tree, port isolation, ACL, QOS, security filtration, storm control technology so that the ONU products have the security of business carrying capacity.
        ● Supporting the DBA and Rate - Limit function, advanced dynamic bandwidth allocation mechanism and function of precise bandwidth limitations, that all users can share 1 Gbps bandwidth resources more reasonably.
        ● Supporting QOS function, realizing the reliable quality of service, and ensuring that the network service priority and service quality of different business.
        ● It supports China Telecom standard defined OAM and extended OAM, including configuration, alarm, performance monitoring, fault isolation and safety management, etc., at the same time it supports the private OAM defined by Lootom, which cooperates with Lootom’s OLT to rich business control.
        ● It follows the international standards of IEEE802.3 ah, the communication industry standards of China(YD/T 1475-1475), meeting the latest requirement of the China telecom CTC2.1/3.0 , and can easily implement the interconnection with the mainstream standard OLT equipment manufacturers, mixing network and minimizing network construction cost. Technical Specifications

Model

GDONU100-4FE

User Interface

4 * 10/100M BASE-T self-adaptive RJ45 interfaces

PON Interface

Symmetrical transmission rate of 1.25 Gbps for downlink and uplink

Network coverage radius: 20KM;Optical connector: SC/PC

High sensitivity optical receiver ≥-26dBm

Transmitting power:0~4dBm

Security: ONU identification mechanism

Dimension

170mm*125mm*33mm(w*d*h)
box:220mm*230mm*70mm
0.5kg

Installation: plug and play

Heat Dispersion

Long term use will not result in any form of performance degradation or

component damage

Environmental

Requirement

Operating environment:-5℃~60℃;10%~90% non-condensation

Storage environment:-40℃~80℃;5%~95% non-condensation

Power Supply

Switch adapter ;Input voltage: AC 110V~240V,50/60Hz;Power≤5W

Scope range of input rated voltage:domestic ±20%;international ±10%

Body Case

Plastic

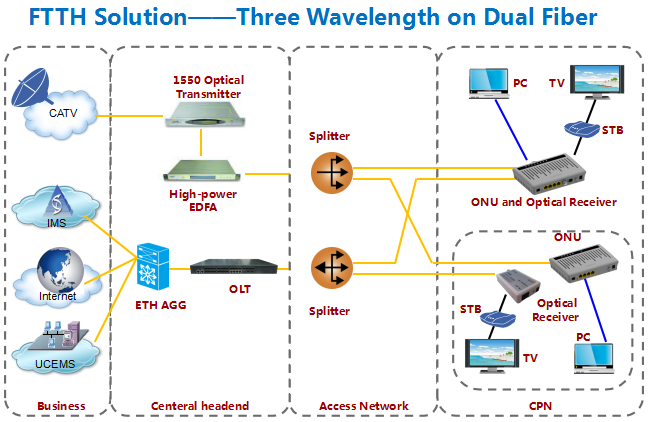

Network diagram
